Home > Bevel Gear Operator> Gear Actuators
for gate and disconnecting valve

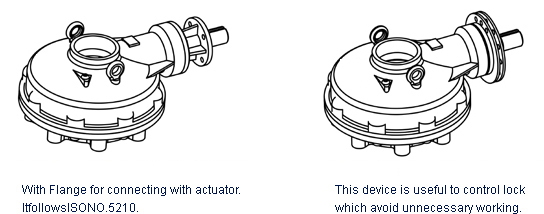

1. It is easy opening & closing that the gear box are
directly mounted on Gate & Globe valve under thrust
loads.
2. The gear box enable efficiency to rise over
90%.which consists of suitable bearing.
3. Regarding gear,It
makes the gear box relax from noise under optimum heat
treatment & precise grinding.
4. It can avoid from
waterproof & oil leakage as sophisticated oil seal is used
at the through part.Protection Grade Can be IP65.
5. Hand
wheel & stem cover are optional index.
-
Technical Data Sheet ╲ SIZE
╲
MODEL ╲Gear Ratio Max Stem Diameter Max Thrust Capacity Max Output Torque M.A. Weight mm KN Kgf N.m Kgf.m ±10% Kg SB-VS10 2.3:1 20 60 6122 220 22 2 12 SB-VS20 2.35:1 22 90 9184 350 36 2 15 SB-V0 3:1 32 135 13776 550 56 2.6 23 SB-V1 3.6:1 38 180 18367 900 92 3 25 SB-V2 4.2:1 48 250 25510 1500 153 3.6 40 SB-V3 4.2:1 52 280 28571 2000 204 3.6 55 SB-V35 5:1 70 370 37755 2800 286 4.3 95 SB-V5 6.3:1 90 650 66327 4500 459 5 170 SB-V6 7.1:1 110 880 89796 6800 694 6 235 -
-
DIMENSION Unit:mm ╲ DIN
╲
MODEL ╲BASE PART EXTERNAL PART INPUT SHAFT PART HAND WHEEL TYPE FLANGE SIZE ΦD1 P.C.D ΦD3 H H1 H2 H3 L2 L D2 N-H-DP L1 ΦPD KEY ΦM RK03 A F-12 85 125 4-M12-18 150 3 45 84 110 275 152 26 16 5X5 300 RK05 F-14 100 140 4-M16-24 175 4 69 96 123 350 170 40 20 6X6 400 RK1 F-16 130 165 4-M20-30 210 5 76 113 138 370 180 50 30 10X8 500 2CK2 B (F-20) 140 205 8-M16-24 250 5 89 113 140 342 202 38 32 10X8 550 2CK3 F-25 200 254 8-M16-24 300 97 127 152 366 226 38 32 10X8 600 2CK5 F-30 230 298 8-M20-30 350 120 163 188 440 280 44 32 10X8 700 2CK8 F-35 260 356 8-M30-45 415 150 225 250 515 355 44 38 10X8 800 2CK10 F-40 300 406 8-M36-54 475 8 176 290 320 675 365 50 50 2-16X10 800
