Home > Bevel Gear Operator> Double spiral bevel Gear Actuators


  • Technical Data Sheet
    ╲          SIZE
      ╲
    MODEL   ╲
    Gear Ratio Max Stem Diameter Max Thrust Capacity Max Output Torque M.A. Weight
    mm KN Kgf N.m Kgf.m ±10% Kg
    2CK2-1S 13.6:1 70 290 29592 2350 240 9.5 52
    2CK3-1S 17.6:1 80 400 40816 3200 327 12.3 70
    2CK5-1S 22:1 95 500 51020 3900 398 15.5 115
    2CK8-1S 42.5:1 110 800 81633 7000 714 29.5 205
    2CK10-1S 48:1 130 1100 112244 10000 1020 34 300

    2CK15-1S 94.4:1 150 1250 127551 15500 1582 65 470

    2CK18-1S 115.5:1 160 1500 153061 22000 2245 80 645

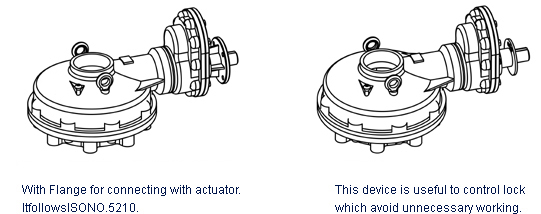

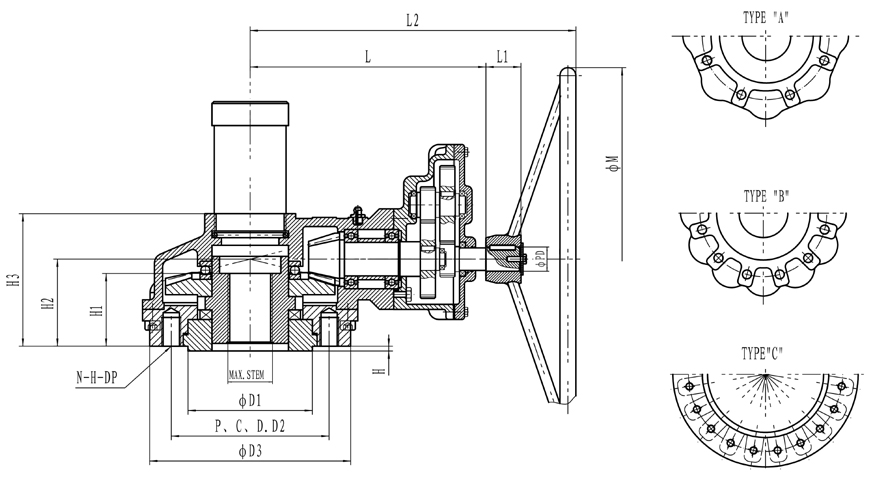

  • DIMENSION Unit:mm
    ╲          DIN
      ╲
    MODEL   ╲
    BASE PART EXTERNAL PART INPUT SHAFT PART HAND WHEEL
    TYPE FLANGE SIZE ΦD1 P.C.D ΦD3  H  H1 H2 H3 K L2 L
    D2 N-H-DP L1 ΦPD KEY ΦM
    2CK2-1S A (F-20) 140 205 8-M16-24 250 5 89 120 144 270 400 305 38 32 8X7 500
    2CK3-1S F-25 200 254 8-M16-24 300 97 130 156 290 470 330 550
    2CK5-1S F-30 230 298 8-M20-30 350 120 163 188 315 530 390 600
    2CK8-1S F-35 260 356 8-M30-45 415 152 225 250 385 640 480 35 10X8 700
    2CK10-1S F-40 300 406 8-M36-54 475 8 176 290 320 420 660 500

    2CK15-1S B F-48 370 483 12-M36-54 560 8 188 320 350 510 750 550 44 45 12X8 800

    2CK18-1S C F-60 470 603 20M36-54 686 8 230 335 365 540 810 610 44 45 12X8 800
